Specifications of the M1 |
The Werk Shop 28814 Nagel Ct., Unit B Lake Bluff, IL 60044 (847) 295.3200 Telephone (847) 615.9375 Fax |
Contact: |
E-mail: Administrator@ProjectM1.com |
Contact: |
|
|
|

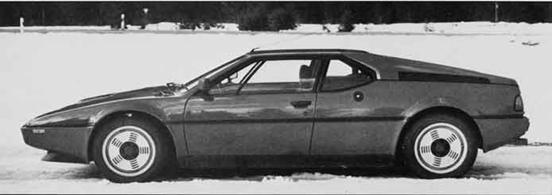

Mid-engine, rear-drive, two-seat, two-door sports car coupe, manufactured by BMW Motorsport |
||
|
|
|
|
Production |
Group 4 |
Dimensions and Capacities |
|
|
Wheelbase (in.): |
100.8 |
100.8 |
Overall length (in.): |
171.7 |
171.7 |
Overall width (in.): |
71.8 |
75.7 |
Overall height (in.): |
44.0 |
43.7 |
Track front (in.): |
61.0 |
62.8 |
Track rear (in.): |
62.0 |
61.4 |
Curb weight (lbs): |
2867.0 |
2249.0 |
Fuel tank (gal): |
30.6 |
na |
|
|
|
Drivetrain |
|
|
Engine type: |
Inline six-cylinder, four valves per cylinder, dohc, alloy head, dry sump |
|
Displacement (cc/ci): |
3453/210.6 |
3500/213.5 |
Compression ratio: |
9.0:1 |
10.8:1 |
Fuel delivery: |
Kugelfischer-Bosch mechanical fuel injection; three double intake pipes with six throttles, 46mm each |
|
Net bhp @ rpm (DIN): |
277 @ 6500 |
470 @ 9000 |
Netlbs/ft torque @ rpm (DIN): |
239 @ 5000 |
282 @ 7000 |
Transmission type: |
ZF five-speed manual transaxle |
|
Final drive ratio: |
4.22:1 |
4.22:1 |
|
|
|
Chassis |
|
|
Front suspension: |
Unequal-length A-arms, light-alloy wheel carriers, coil springs, anti-roll bar |
Unequal-length A-arms, magnesium wheel carriers, coil springs, adjustable anti-roll bar |
Rear suspension: |
Unequal-length A-arms, light-alloy wheel carriers, coil springs, anti-roll bar |
Unequal-length A-arms, magnesium wheel carriers, coil springs, adjustable anti-roll bar |
Steering: |
Rack-and-pinion |
Rack-and-pinion |
Turns lock-to-lock: |
3.1 |
2.0 |
Turn diameter (ft): |
42.7 |
na |
Brake system: |
Four wheel vented discs, 11.8" front, 11.7" rear, dual circuit, boosted, pressure limited rear |
Four-wheel ATE vented discs, dual circuit, driver adjustable for front/rear balance |
Wheels: |
Cast-light-alloy, 7"*16" front, 8"*16" rear |
BBS modular, 11.0"*16" front 12.5"*16" rear |
Tires: |
Pirelli P7, 205/55VR-16 front, 225/50VR-16 rear |
10.0/23.5*14 front, 12.5/25.0*16 rear |
|
|
|
Performance |
|
|
0-60 mph (sec): |
5.6 |
4.5 |
quarter mile (sec): |
13.7 |
11.6 |
Top speed (mph): |
167 |
190 |
Mpg: |
13 |
5 |
